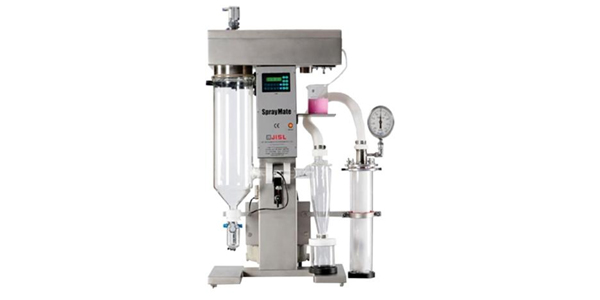

SPRAY MATE LAB SPRAY DRYER

Awesome Image


Features :

PLC based control system.
HMI user interface ( Touch screen - optional)
PC based software for control and data acquisition.
Spray dry with aqueous as well as solvent based solutions.
Compact table top model; enables spray drying trial with even 30 ml samples.
Designed with a SS-316 material & reinforced with flameproof motors, to withstand the effect of acid & solvent spray drying.
Simple to operate and clean, economical and gives quick results.


Application :

Spray drying.
Microencapsulation.
Recovery of synthetic or extracted products.
Structure Conversion.


Specification :

  Evaporation capacity   1.0 L/hr H2O max.
  Temperature of drying air:   250°C ± 1°C accuracy.
  Heater capacity:   2.5 KW.
  Compressed air for spray flow:   2-5 bar.
  Chamber Diameter:   4",6" or user specified.
  Nozzle:   Two-fluid, co-current, SS-316L, 0.7mm, with Auto-De-blocking device & option for variable nozzle apertures.
  Material of Construction:

  Product contact parts & main stand: SS-316L.
  Heating Apparatus: Borosilicate Glass.
  Interconnecting Parts: Teflon, Silicon, Alkathene.

  Dimension L x W x H :   50x60x100cm.
  Weight:   60 Kg.
  Optional Accessories:

  Counter-Current Nozzle.
  Variable nozzle apertures- 0.5, 1.0, 1.5 mm.
  Three-fluid nozzle.
  Ultrasonic nozzle.
  Twin-Cyclone Attachment.
  Nitrogen Inert loop.
  Hot melt system.
  PTFE Scrubber for sub-micron particle collection.
  Spray Congealing Attachment.


LABORATORY SPRAY DRYER LSD-48

Awesome Image


Features :

Individual controller for temperature, vaccuum and feed rate using control knobs.
Spray dry with aqueous as well as solvent based solutions.
Compact table top model; enables spray drying trial with even 30 ml samples.
Designed with a SS-316 material & reinforced with flameproof motors, to withstand the effect of acid & solvent spray drying.
Simple to operate and clean, economical and gives quick results


Application :

Spray drying.
Microencapsulation.
Recovery of synthetic or extracted products.
Structure Conversion.


Specification :

  Evaporation capacity   1.0 L/hr H2O max.
  Temperature of drying air:   250°C ± 1°C accuracy.
  Heater capacity:   2.5 KW.
  Compressed air for spray flow:   2-5 bar.
  Chamber Diameter:   4",6" or user specified.
  Nozzle:   Two-fluid, co-current, SS-316L, 0.7mm, with Auto-De-blocking device & option for variable nozzle apertures.
  Material of Construction:

  Product contact parts & main stand: SS-316L.
  Heating Apparatus: Borosilicate Glass.
  Interconnecting Parts: Teflon, Silicon, Alkathene.

  Dimension L x W x H :   50x60x100cm.
  Weight:   60 Kg.
  Optional Accessories:

  Counter-Current Nozzle.
  Variable nozzle apertures- 0.5, 1.0, 1.5 mm.
  Three-fluid nozzle.
  Ultrasonic nozzle.
  Twin-Cyclone Attachment.
  Nitrogen Inert loop.
  Hot melt system.
  PTFE Scrubber for sub-micron particle collection.
  Spray Congealing Attachment.
