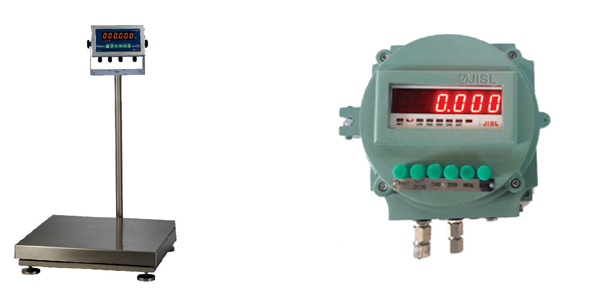

Industrial design. Suitable for general purpose weighing in industry.
Rugged tube frame construction with high structural integrity.
Height adjustable feet and optional spirit level for accurate weighing.
Optional indicator stand and back rail or trolley.
Models available for installation in safe or hazardous areas.
Capacity from 10 kg to 1000 kg with single load cell.
Platform scales are used in industries and trade for basic weighing.
Single Load Cell based:
Class | Capacity | Least Count | Top Cover | PF Size |
---|---|---|---|---|
III | 10 Kg | 1 g | SS | 350 mm Sq. |
20 Kg | 2 g | SS | 350 mm Sq | |
50 Kg | 5 g | SS | 500 mm Sq. | |
100 Kg | 10 g | SS | 500 mm Sq. | |
200 Kg | 20 g | SS | 610 mm Sq. | |
500 Kg | 50 g | SS | 610 mm Sq. | |
500 Kg | 50 g | MS | 750 mm Sq. | |
1000 Kg | 100 g | MS | 1000 mm Sq. | |
1500 Kg | 200 g | MS | 1000 mm Sq. | |
II | 15 Kg | 1 g | SS | 350 mm Sq. |
30 Kg | 1 g | SS | 350 mm Sq. | |
30 Kg | 2 g | SS | 350 mm Sq. | |
50 Kg | 2 g | SS | 350 mm Sq. | |
150 Kg | 10 g | SS | 610 mm Sq. | |
300 Kg | 10 g | SS | 610 mm Sq. | |
300 Kg | 20 g | SS | 610 mm Sq. | |
500 Kg | 20 g | SS | 610 mm Sq. | |
600 Kg | 50 g | MS | 750 mm Sq. |
For easy movement of material
Smooth dust resistant roller and ramps with ZZ bearings
Ramp with rollers on one side or both side
MOC : MS or SS
Capacity from 50 kg to 500 kg
Weighing and manual conveying of filled drums, cans, tin and cartons
Platform Size |
500mm Sq. |
610mm Sq. |
750mm Sq. |
---|---|---|---|
No. of Rollers |
6 |
7 |
8 |
Pitch ( mm) |
90 |
95 |
100 |
O.D. ( mm) |
50 |
50 |
50 |

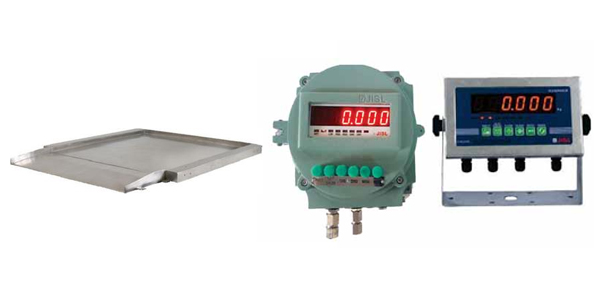

For floor mounting applications where pit can not be made or floor space is limited.
Platform height is only 45 mm.
Specially designed for pharma IBC/trolley weighing.
One side approach ramp for in/out trolley or IBC.
MOC of PF : MS or SS. MOC of load cell : Alloy steel (IP67) or SS (IP68).
Capacity from 300 kg to 2000 kg with 4 load cells.
Weighing of IBC / trolley in pharma industries. Weighing of material using pallet, trolley in industries where pit can not be made.
Capacity | Least Count | Top Cover | Platform Size |
---|---|---|---|
500 Kg | 50 g | MS/SS | 750 mm Sq. |
1000 Kg | 100 g | MS/SS | 1 m Sq., 1.5m Sq. |
2000 Kg | 200 g | MS/SS | 1.25m Sq., 1.5 m Sq. |

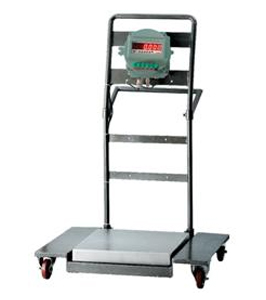

For multipurpose application where the scale has to be moved frequently.
Size 500 sqmm to 1000 sqmm.
Weighing platform on trolley.
Option of four wheels or two wheels trolley.
Weight indicator withj built in battery.

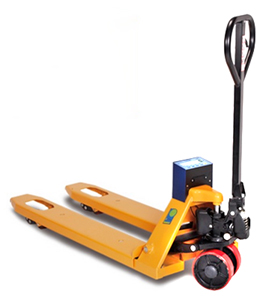

Fork dimension : 1150mm long x 555mm wide other size on request.
Lift height 95mm to 200mm.
MS washable construction.
Dual polyurethane wheels on steering column for additional stability.
Battery operated indicator (weather proof or flameproof).
Capacity from 500kg to 2000kg.
Option for ATEX Approved.
