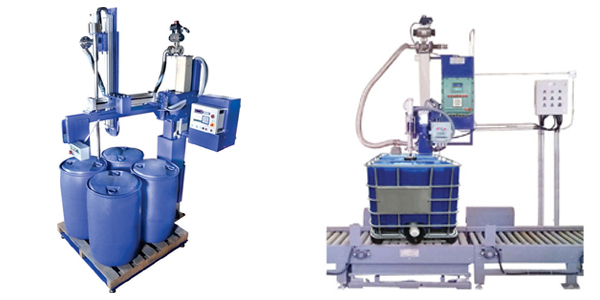

LIQUID FILLING SYSTEM - PALLETISED

Awesome Image


Features :

Advanced weight controller with inbuilt logic for accurate net weight filling in each drum.
Solution to fill foaming & non-foaming liquids.
Weatherproof or flameproof executions.
Inbuilt safety interlocks.
Section of platform such as square, U type, E type or conveyor Type suitable to pallet handling.
Option for Infeed and outfeed motorised conveyor for easy movement of pallets.


Application :

Gravimetric filling of industrial solvents, emulsions, resins, chemicals in drums on pallet/IBC container (up to 1,500 kg)


Specification :

Below bunghole filling for non foaming oils and chemicals.
Subsurface filling for foaming chemicals.
Wetted part moc SS-316.
Valve size : 1.5".
PF size : 1250 mm x 1250 mm.
Capacity: 1500Kg.
Pneumatic arrangement for height adjustment.
Pneumatic brakes on filling arm.
Pneumatic arrangement for forward/reverse movement of filling nozzle.

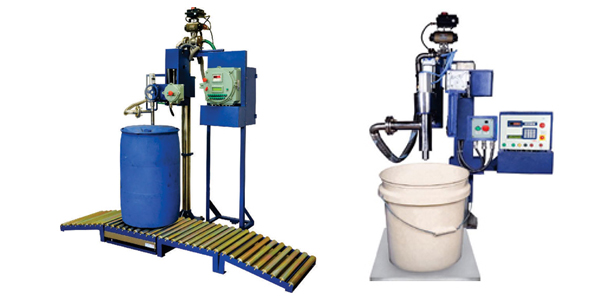

LIQUID FILLING SYSTEM - DRUM/CARBOY

Awesome Image


Application :

Gravimetric filling of foaming and non-foaming liquids in drums or carboys- chemicals, solvents, pesticides, oils, resins etc.


Specification :

Below bunghole filling for non foaming liquids.
Subsurface filling for foaming liquids.
Wetted part moc SS-316.
Valve size : 1.5".
PF size : 610 mm x 610 mm.
Safety interlock for fool-proof operation.
Mechanical arrangement to accomodate filling of different height of drums.

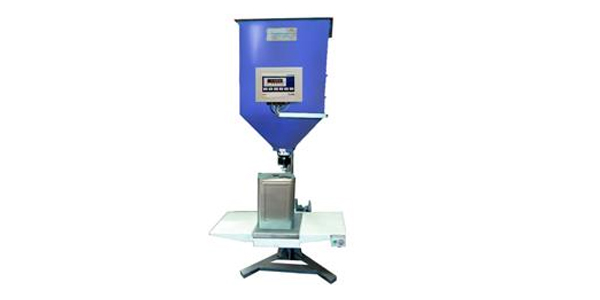

LIQUID FILLING SYSTEM - TIN

Awesome Image


Features :

Available for single and different height tins (from 1 kg to 30 kg).
Fast filling in 2 speeds. Up to 4 tins of 15 kg/min.
MS or SS construction.
Holding tank with float valve for higher speed and filling accuracy.


Application :

Gravimetric filling of edible oil and liquid.


Specification :

Wetted parts moc - SS304 Capacity: 30Kg
PF Size: 350 mm x 350 mm
Line Size : 1"
START /STOP push button.

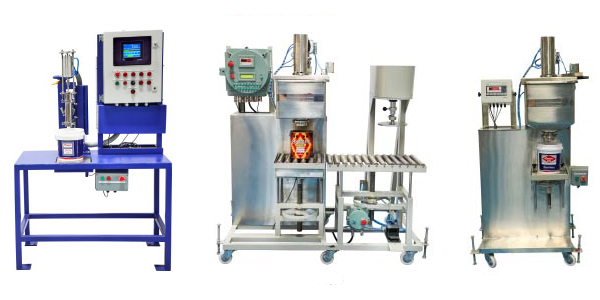

PAINT FILLING SYSTEM

Awesome Image


Features :

Gravimetric Filling System.
Advanced weight controller with inbuilt logic for accurate filling.
Filling capacity from 500 gm to 30 kg.
Container detection & Inbuilt safety interlocks.
Systems with Flame Proof/ Weather Proof execution as per requirement.
Automatic & Semi Automatic filling solutions.
Standard & customized solutions.
Filling in coarse & fine.
Optional Nitrogen purging solution.
Easy cleaning & change over.
Optional Lid/ Plug Press Systems available.
Optional PC based Software for Filling data recording & report generation.


Application :

Gravimetric filling of different types of solvent/ water based paints, hardeners, thinners, resins and distemper.


Specification :

Standard Wetted part MOC SS 304.
System available with Tub/ Tub less (with Nozzle) design.
Auto material level control in systems with Tub.
Built-in inflight correction.
Low height filling option available.
Safety interlock for fool-proof operation.
Mechanical height adjustment facility.
Auger Filling for filling of viscous products.

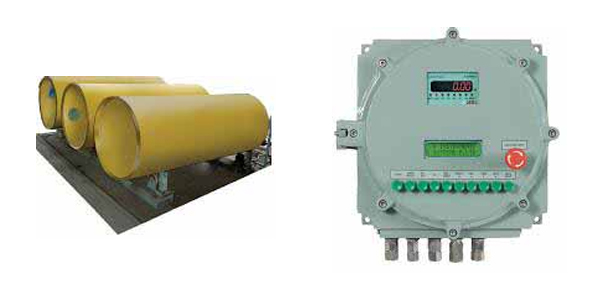

GAS CHARGING SYSTEM

Awesome Image


Features :

Rugged platform for tonner application with ventilation for fumes.
Platform for single, dual or multi tonner application.
Tronian for easy rotation of cylinder.
Flow rate indication or control through PID.
Loss in weight indication.
Set point control.
Analog output of Net/Gross weight and flow rate.


Application :

Used for controlled charging of chlorine, ammonia, bromine and refrigerative gases.


Specification :

Electronic Indicator : FW2200FZ4.
Enclosure : Flameproof for use in group IIA and IIB.
Display : RED LED for weight and LCD for flow rate / message, LIW / GIW.
Communication : RS232 / RS422 / RS485.
I/O : 3 DI / 3 DO ( optional ).
Power Supply : 230 V AC +/- 10%.
