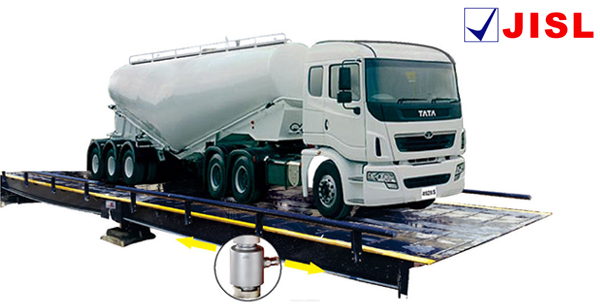

WEIGH BRIDGE
Features :
Pit design without ramp or pit less design with ramp.
Size from 6 x 3 m to 20 x 3.5 m.
Capacity from 10 MT to 150 MT.
IP68 hermetically sealed waterproof load cells.
Choice of digital or analog load cells.
Rugged structure with ISI approved steel.
Modular design. Bolted or welded structure available.
Easy to install and service.
Lightning protection.
Application :
Weighing of vehicles/ trucks both empty and loaded to find net weight in trade and manufacturing.
To check over load of vehicles on high-ways.
Specification :
Capacity(Ton) |
Least Count(Kg) |
Size(m) |
Load Cells |
LC.Capacity(Ton) |
|---|---|---|---|---|
40 |
5 |
9 x 3 |
6 |
20 |
60 |
10 |
9 x 3 |
6 |
30 |
10 |
12 x 3 |
6 |
30 |
|
10 |
18 x 3 |
8 |
30 |
|
80 |
10 |
16 x 3 |
8 |
30 |
10 |
18 x 3 |
8 |
30 |
|
100 |
20 |
18 x 3 |
8 |
30 |

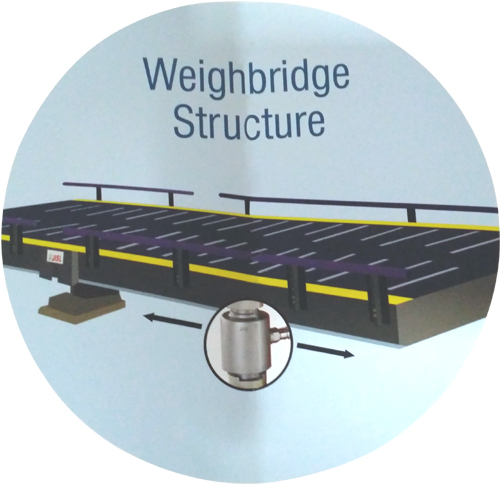

Modular Platform Structure
Complete Range of Loadcells

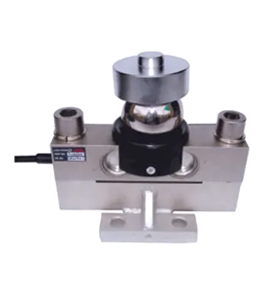

Double-Ended Shear Beam :
•Nickel plated alloy steel construction
•IP68 protection
•Built in mounting Assembly
•Rated output : 2mV/V
•Total error : +0.02%
•OIML approved

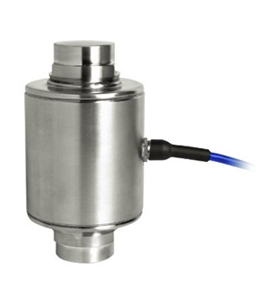

Compression Column :
•Fully Stainless steel construction
•Complete hermetical sealed to IP68 / IP69 protection.
•Pre-corner adjustment optimised for multi-cell systems.
•Self-centering column design with anti rotation.
•In-built surge arrestors for lightning protection.
•OIML / ATEX approved
Digital Compression :
•Rated output 200000 Counts.
•Digital Interface RS485 full duplex.
•Configuration & ungradable software through serial interface.
•Failure detection ensure working of all loadcells.
•Corner adjustment through keyboard.
•No calibration required after replacement of loadcell in case of maintenance
•Distance between weighbridge & indicator up to 1200 mts
•Option for series connection (Daisy chain)
