WEIGHT INDICATOR / CONTROLLERS

JISL manufactures Industrial weighing indicator & controllers in India to complement our own product range. This enable us to meet the weighing needs of almost any industry application & offer turnkey end to end solutions that are at the leading edge of technology.

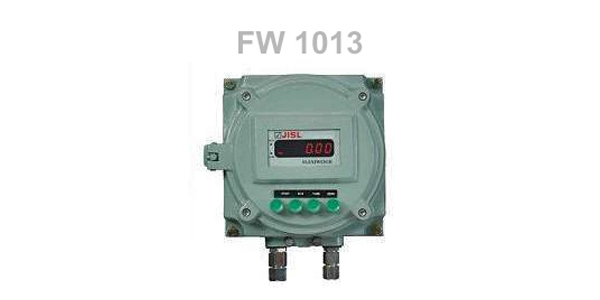

FLEXIWEIGH 1013

Awesome Image


Features :

Multipurpose, field programmable weight indicator.
Fast, accurate & reliable.
1,00,000 count internal resolution, display resolution upto 30,000 dd (HiRes option).
Unique built-in dead weight compensation in the ADC.
Multi-Point digital calibration.
RS 232 serial port with printing facility (RS 422 optional) and connection to PLC.
HiRes model (optional) with part counting.
One touch zero, zero calibration, tare, net/gross, print/hold.
Stainless steel weatherproof/washable and dustproof IP67 housing or explosion proof housing (CMRI and CCE certified) with built in zener barriers.
Embossed tactile keypad with 4 keys for easy operation.
Power supply from 90V to 270V ac without affecting operation or accuracy.
Optional Rechargeable Sealed Lead Acid Batterie for up to 16 hours operation without power supply.
Optional SS enclosure to flame proof for GMP.

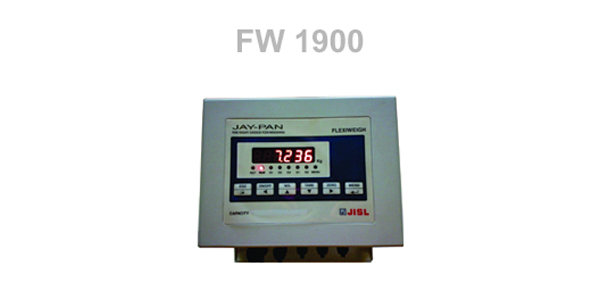

FLEXIWEIGH 1900

Awesome Image


Features :

Multipurpose, flexible, programmable weight indicator and controller.
1,00,000 count internal resolution, display resolution upto 30,000 dd.
Unique built-in dead weight compensation in the ADC.
Multi-point digital calibration.
Built in real time clock calendar with printing facility.
Up to 3 opto-isolated digital I/Os for filling, emptying, level control or check weighing applicator.
16 bit 4-20mA Analog output.
Opto-isolated RS 422/232 serial port.
SMD based circuitry for reliability and ruggedness.
Weatherproof IP 67 or or Explosion proof housing.
Embossed tactile keypad with 6 keys for easy operation.
Power supply from 90V to 270V ac without affecting operation or accuracy.
Optional SS enclosure to flame proof for GMP.


FLEXIWEIGH 2200

Awesome Image


Features :

For moue complex Control application and shipper scales, loss-in-weight, flow monitoring, batching, filling, bagging applications.
Up to 8 opto isolated digital I/O s.
2 nos 16 bit 4-20mA analog output with weight and flow rate indication.
User friendly LCD display for instruction and display message.
Up to 2 opto-isolated RS 422/232 serial ports.
Built in Real Time Clock Calendar (RTCC) with printing facility.
SS Enclosure on flameproof.


Common Features :

1,000,000 count internal resolution. Display resolution upto 30,000dd.
Unique built-in-dead weight compensation in the ADC.
Multiple point Digital Calibration.
Power supply from 90V to 230V AC, 50/60 Hz.
Enclosure : Weatherproof IP 67 in MS / SS or Explosionproof (CMRI / CCE certified).

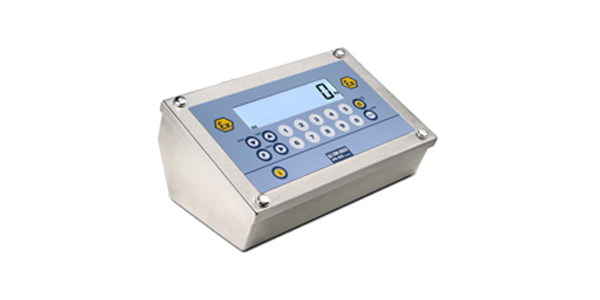

DFW ATEX

Awesome Image


Features :

Waterproof 17-key functional keypad.
Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.
Satined IP68 stainless steel case.
Suitable for use on the table, or wall.
Dimensions: 264x174x115mm.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 800,000 displayable divisions for internal factory use.
Up to 8 signal linearization points with DINITOOLS (3 from keypad).

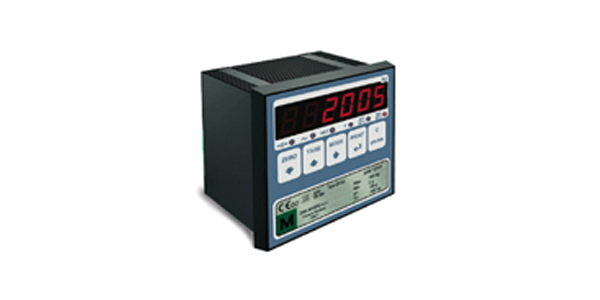

DGTQ

Awesome Image


Features :

Dosing, Filling, Batching.
Panel mounted with 12/24 V DC power supply.
Up to 16 load cells. Up to 4 independent scales.
RS 232 / RS 485 / Modbus / Profibus.
Digital Input / Output : up to 2 opto isolated inputs and up to 6 outputs.
Analog output : 0/4-20mA or 0-10V DC.

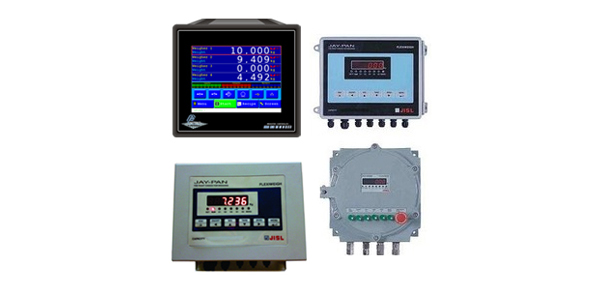

FLEX SERIES

Awesome Image


Features :

Application : Multi Components Batching, Filling, Loss in Weight, Check Weighing, Belt Weigher.
Up to 1600 samples / second for best control accurary.
High resolution 5, 7 inch color TFT Touch Screen.
Free programming.
Stand alone Function.
PLC inside.
Time saving, G-Cal technology for Calibration.
RS 232, RS 422, RS 484, Ethernet, USB, can bus and Profibus DP Protocols.


FLEX CONTROLLER

4 channel high speed ADC.
Up to 60 digital I/O.
4 analog output.


FLEX 2100 CONTROLLER

8 digit input / 8 digit output
Panet Mount or SS enclosure

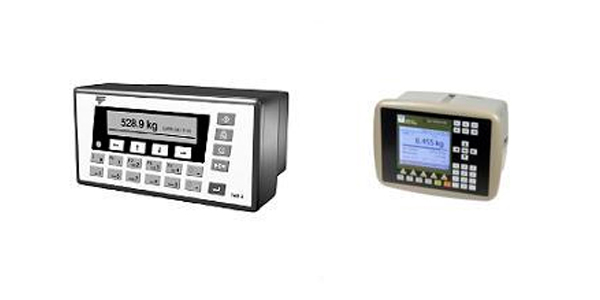

TAD 3 And G 4

Awesome Image


TAD 3 : Weight Processor

Weight processing monitor for advanced process control application.
Excellent connectivity with GATE - 3: Profibus DP, Ethernet, Devicenet, Controlnet, Canopen, Interbus, Modbus TCP, Modbus Plus.
Excellent operator interface. Easy setup via front panel or PC.
Multiple recipe controller – 30 recipes with upto 24 activities per recipe.
Non weighing functions such as stirring, heating can also be controlled.
Customized software.
Application: Batch / Blend / Mix System, Quality critical process weighing, Custom weighing applications, flow measurements.


G 4 : New Generation Multichannel Instrument

Up to eight synchronous measurement channels.
Simple set-up and calibration.
20 kHz-bandwidth provides very fast response.
Connectivity: Most fieldbus options available, plus Ethernet.
Large internal memory capacity.
Full-color touch screen provides increased functionality.
Panel- and DIN-rail-mounting versions.

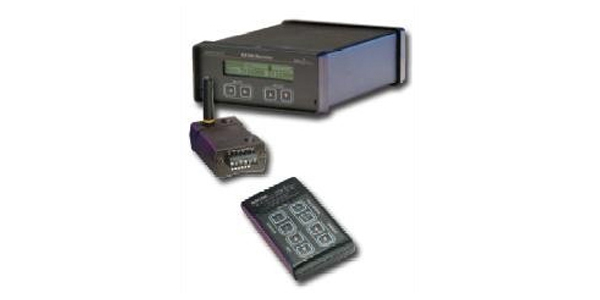

TORQUE MEASUREMENT SOLUTION

Awesome Image


Features :

Transmission of live torque or strain data from rotating shaft (TT 10 K).
Continuous torque, power, RPM and Shaft direction data rotating shaft (TT Revolution).
The System mounts externally. Shaft modification is not required. Machine disassembly is not required.
Convenient calibration.
Strain guage sensor based system.
